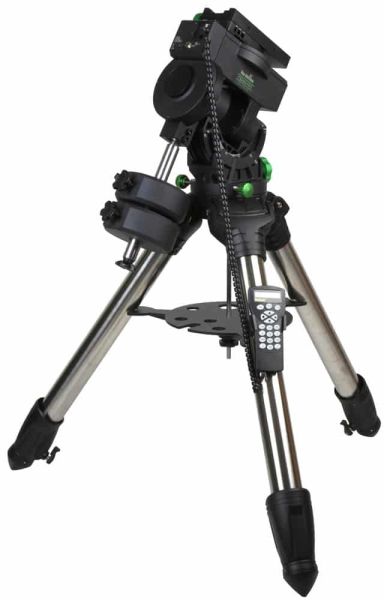

Skywatcher CQ350 PRO SynScan GoTo Mount - Head only
Skywatcher CQ350 PRO SynScan GoTo mount, with a load capacity of 35 kg, intermediate belt drive and new design with multi-connectivity.
The needs of today's astrophotographers move at the speed of light; it is essential to meet increasingly specific requirements and develop solutions to improve photography and observation sessions for those of us who love the stars and the universe.
Skywatcher CQ 350 PRO is an equatorial mount with a load capacity of 35 kg, positioned between the EQ8-R and EQ6-R models.
Skywatcher engineers wanted to implement a sophisticated and comprehensive connectivity system in the mount, which includes: 4 USB ports, 1 SNAP, 1 power input port, 3 power output ports, 1 hand control port and 1 autoguide port, as well as 6 auxiliary ports.
The intermediate belt drive and the generous size of the worm gears and ring gears make the Skywatcher CQ350 SynScan mount ideal for astrophotography, both planetary and deep sky.
The internal cable management, as well as the remarkable load capacity of 35 kg, make the Skywatcher CQ350 SynScan mount ideal for use in small observatories.
| TECHNICAL FEATURES | DETAILS |
|---|---|
| Type | Equatorial Mount SynScan GOTO |
| Load Capacity | 35 kg |
| Latitude Adjustment Range | 0°–70° |
| Azimuth Adjustment Range | ±15° |
| Mount Dimensions & Weight | 15 kg, 434 x 176 x 323 mm |
| Tripod Dimensions & Weight | 15.7 kg, height adjustable from 775 mm to 1080 mm |
| Included Counterweights | 2 x 10 kg |
| Power Supply | DC 12~16V, 2A, 55W |
| Motors | High-precision hybrid stepper motors |
| Transmission | Intermediate belt drive |
| Worm Gears | 308 for Right Ascension, 288 for Declination |
| Worm Shaft Diameter | 55 mm |
| Resolution | 55,193,600 counts/rev, 0.023 arcseconds |
| Maximum Slewing Speed | 4°/second |
| Tracking Rates | Sidereal, Lunar, Solar |
| Autoguiding Speeds | 0.125X, 0.25X, 0.5X, 0.75X, 1X |
| Dovetail Mounting | Vixen (CG5) + Losmandy (CGE) |
| Home Position | Automatic home position |
| Connectivity | 4 USB ports, 1 SNAP port, 1 power input, 3 power outputs, hand controller port, autoguider port |
| Database | Messier, NGC, IC, SAO, Caldwell, double stars, variable stars, planets |
| Controller | Controlled via SynScan Pro (Windows/USB), SynScan Pro (iOS/Android via Wi-Fi dongle), SynScan Hand Controller |
