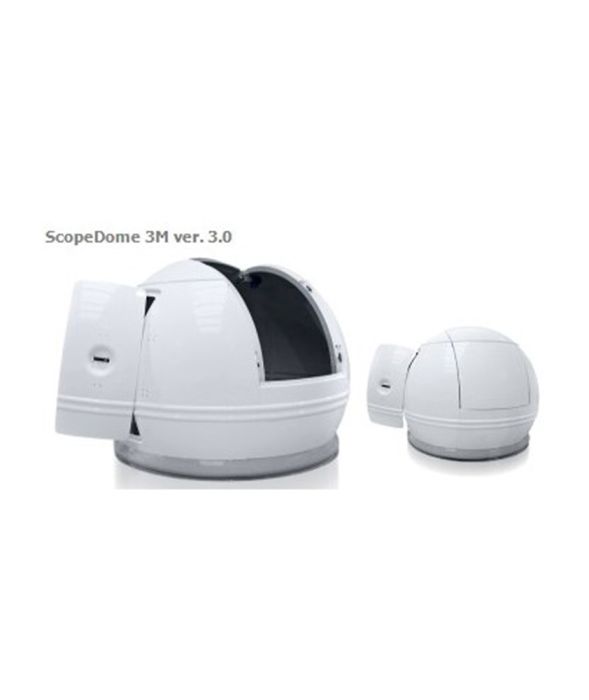

ScopeDome 3M V3

The ScopeDome 3M V3 is available in both manual and fully motorized versions, controllable via PC and even over the Internet. It is the result of more than a year of development by ten different companies, each analyzing every detail to create an observatory designed down to the finest specifics.

The dome’s unique shape sets it apart from any other amateur observatory. It was designed not only to protect instruments from weather conditions but also to provide more interior space, especially when carrying out visual observations or astrophotography sessions inside the dome.

Thanks to its spherical design, it offers greater volume at human chest height – precisely where other observatories, with their vertical side walls, can feel restrictive.

The ScopeDome 3M V3 is built to deliver perfect protection against all weather conditions: strong winds (up to 140 km/h or slightly higher), snow thanks to reinforced ribs, and heavy rain with rapid drainage through specially designed channels.

Dimensions

Usable diameter: 3 m (W)
Observation window width: 1 m (S)
Height at zenith: 2.4 m (H)
Base diameter: 2.76 m (B)

Main Features

Constructed with advanced fiberglass and polyester fibers in 6 mm laminated weave
Reinforced structure with double-curvature ribs and convex external profiles
Weather-resistant, including wind speeds up to 140 km/h
Composed of only 7 parts for easy and fast assembly
Dedicated water drainage channels
Observations possible from the horizon (90 cm above ground) to beyond the zenith
Motorized dome rotation on gear rack
Grey interior to avoid reflections
Weight: approx. 350 Kg (pallet included)

Key Improvements Over the Classic Version

Optional side access door
Completely redesigned shutter and motorization system
Ability to open and close the shutter in any position
Wider zenith opening window
New design for improved weather protection
Easier and faster installation
Improved aesthetics with custom RAL color options

Motorization

230V DC low-noise rotation motor
230V DC low-noise shutter motor
Encoder mounted on rotation motor to provide dome position feedback to PC software, enabling GoTo functions and automatic sidereal tracking

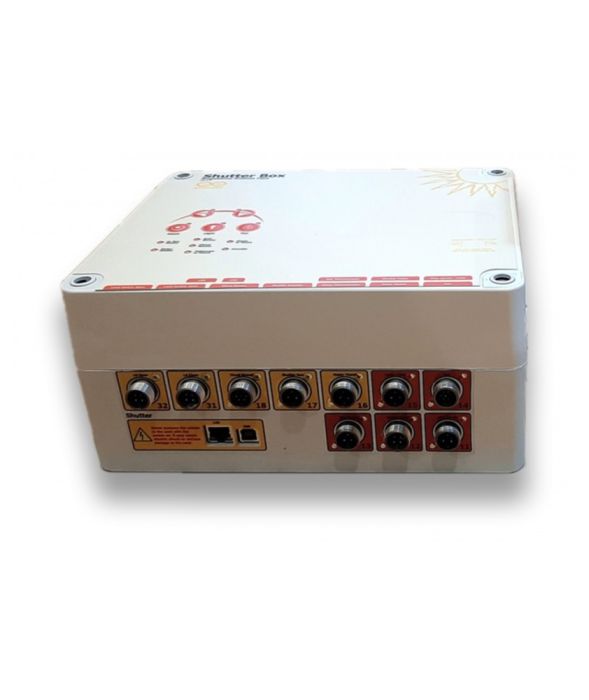

Digital control unit with USB port, controllable via PC
Control unit supports both manual control (optional remote) and full automation
ASCOM-compatible drivers downloadable from the manufacturer’s website
Control unit includes four power outputs for internal equipment such as telescopes, CCD cameras, accessories, or lighting

PC Control

Full ASCOM driver support
Open/close shutter
Dome rotation in both directions
GoTo function for any azimuth coordinate with 30 arc-second precision
Automatic dome repositioning at set intervals for independent sidereal tracking
Dome synchronization with telescope movement during GoTo and tracking
Emergency stop function
Semi-automatic dome synchronization with sky movement during visual observations
Home position and Park position settings
Real-time azimuth position measurement and display
Display of telescope position relative to the dome
OnTop function: keeps control window always visible on PC
Graphical display of dome status (open, closed, azimuth position)
Four customizable outputs for power and control of internal equipment
On/off power management for the four outputs
Observatory open/close with a single button
Position sensors for Home position, also on the shutter
Independent control via optional remote
Full remote management via Internet
Test mode to simulate control unit actions
Graphical radar showing real-time dome position
Progress bar for shutter closure
Timeout control for moving mechanical parts
ASCOM compatibility
Compatible with popular sky simulation software (e.g., TheSky) and CCD control software (e.g., MaxIm DL)
System requirements: Windows XP SP2 or later, Microsoft .NET Framework 3.5 (free from Microsoft), ASCOM > 5.0
