Baader Standard Base - for MQR III & IV & for V-Bracket, and for all Vixen-style finderscope mount bases
Standard base viewfinder mounting Pairing MQR III, IV MQR, SkySurfer 5 for mounting on the "second telescope" and for all Vixen-style finderscope mount bases

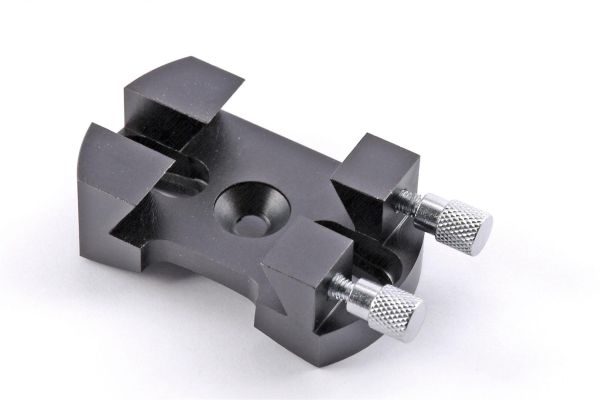

The Baader standard basis is milled from solid (no cheaper casting), adjusts all Tubusradien and can be with two screws in the slots - but also with a single screw in the center - absolutely firmly attach.
The base plate is milled sinusoidal and forms on each tube radius 130-400 mm diameter two linear runs. This provides maximum stability.
Hole spacing: for attachment onto a telescope OTA, the Baader-Standard-Base has two long-holes of 14 mm length each and 5.3mm width, The middle spacing between both holes is 36 mm. Accordingly the center spacing distance of two 5mm screws may vary from 26 mm to 46 mm
|Package width||10 cm|
|Package height||7 cm|
|Package depth||7 cm|
|No. of parcels||1|
