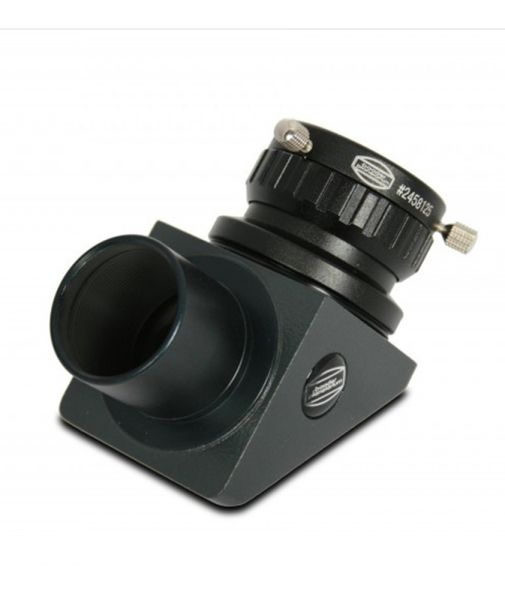

Baader Planetarium Zenith Prism Diagonal T2/90 degrees with 32mm Prism
Baader Zenith Prism Diagonal T-2/90 ° with 32mm Prism (T-2 part #14). Containing: T-2/32 Diagonal with focusing 1¼" eyepiece clamp (#2458125) and 1¼" nose piece (#2458105). Connection objective side: T-2 internal thread 1¼ "barrel. Connection eyepiece: T-2 external thread and focusable 1¼ "eyepiece. Excellent for Baader Maxbright binoviewer.
Baader Zenith Prism Diagonal T-2/90 ° with 32mm Prism (T-2 part #14).
- Containing: T-2/32 Diagonal with focusing 1¼" eyepiece clamp (#2458125) and 1¼" nose piece (#2458105).
- Connection objective side: T-2 internal thread 1¼ "barrel.
- Connection eyepiece: T-2 external thread and focusable 1¼ "eyepiece.
- Excellent for Baader Maxbright binoviewer.
Baader Planetarium Zenith Prism Diagonal T2/90 degrees with 32mm Prism
|
Manufacturer |
Baader Planetarium |
|
SKU (#) |
2456005K |
|
Weight (kg) |
0.202 |
|
Optical Design |
Star Diagonal Prism |
|
Inner Connection (lens sided) |
Thread, T-2 (M42 x 0,75) |
|
Outer Connection (lens sided) |
Barrel, 1¼" |
|
Inner Connection (eyepiece/-camera-sided) |
Clamp, 1¼" |
|
Outer Connection (eyepiece/-camera-sided) |
Thread, T-2 (M42 x 0,75) |
|
Reflection surface |
Total reflection |
|
AR-Coating |
High transmission multi-coated (HT-MC) |
|
Image Orientation |
Erect image, Mirror inverted |
|
Optical length (mm) |
64 |
|
Deflection angle |
90° |
|
Inner Diameter / Clear Aperture (mm) |
32 |
| Product Status | New |
|---|---|
| Package width | 15 cm |
| Package height | 15 cm |
| Package depth | 10 cm |
| No. of parcels | 1 |
