Player One Astronomy Ceres-C USB3.0 Color Camera (IMX224)

€189.00
Availability: In stock
Only 3 left
SKU:
POA-CERES-C

Ceres-C is a guiding camera developed by Player One Astronomy, which adopts the Sony IMX224/225 1/3” format sensor. The 3.75 um pixel size accommodates a well depth of 19.4ke with a total of 1.2 MP (the resolution is 1304*976), and the diagonal is 6 mm.

Brands:

Player One Astronomy Ceres-C USB3.0 Color Camera (IMX224)



Ceres-C is a guiding camera developed by Player One Astronomy, which adopts the Sony IMX224/225 1/3” format sensor. The 3.75 um pixel size accommodates a well depth of 19.4ke with a total of 1.2 MP (the resolution is 1304*976), and the diagonal is 6 mm.



DPS Technology

The guiding cameras from Player One Astronomy have DPS (Dead Pixel Suppression) technology. The DPS is anaylse many dark frames to find out thoes fixed abnormal pixel and record the map in camera memory. In imaging, each exposure frames, thoes position of dead pixels will be given a median value according to the active pixels around that abnormal pixel.

Overvoltage and overcurrent protection mechanism

Player One cameras produced by the number one player ensures the safety of your camera and other equipment through overvoltage and overcurrent protection mechanisms.

Data Port

When the camera is connected to the USB3.0 interface and full-resolution preview is used, it can reach 154 FPS in RAW8 mode (10bit ADC). When recording images, since the actual writing speed will be affected by the writing speed of the hard disk itself, when the hard disk writing speed is slow, the recording may not reach the theoretical speed. It is recommended that you use a high-quality solid state drive to record data to give full play to the performance of the camera.

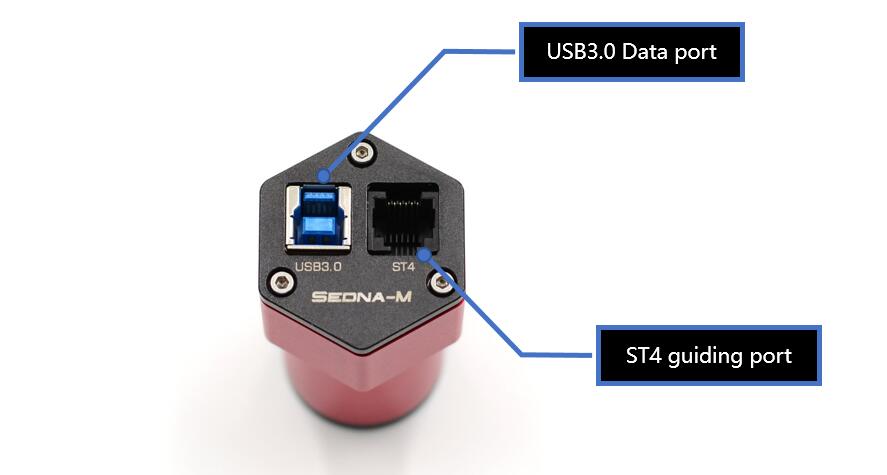

Use the ST4 guide cable to connect the camera and the AUTO GUIDE port of the equatorial mount to do guiding.

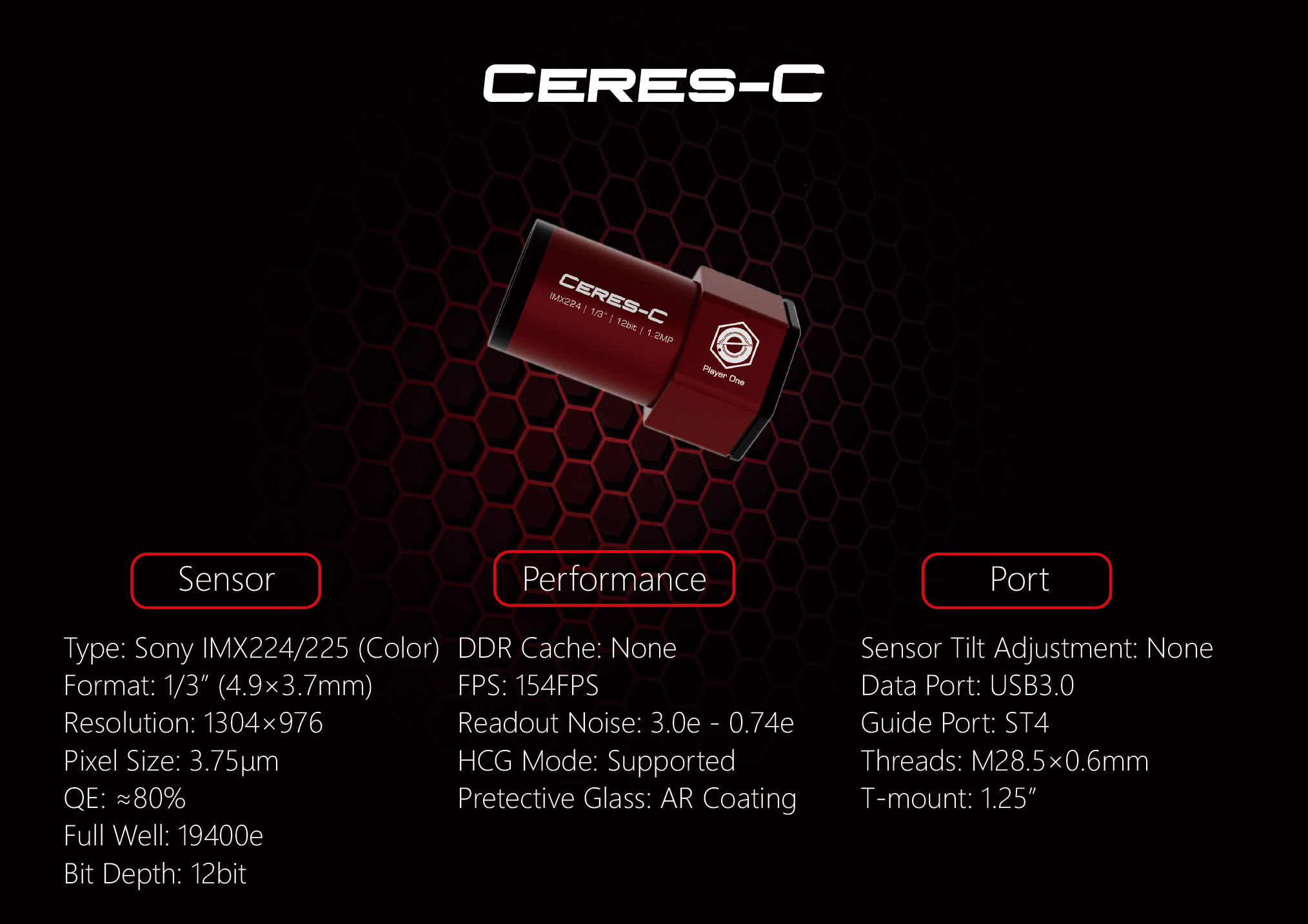

Performance



Sensor

Sony IMX224/225 CMOS (Color)

Diagonal

6 mm

Total Pixels

1.2 Mega Pixels

Max Resolution

1304×976

Pixel Size

3.75 μm

Chip Size

4.9×3.7 mm

Frame Rate

154 FPS(10bit)

Shutter

Rolling shutter

Exposure Range

32μs-2000s

Readout Noise

3.0-~0.74 e-

QE Peak

 about 80%

Full Well

19.4 k e-

ADC

12 bit

Data Port

USB3.0/USB2.0

Adapter

1.25″ / M28.5X0.6

Back Focal Length

7.5 mm

Protective Window

AR coating

Diameter

40 mm

Weight

65 g

Resolution and FPS

Under USB3.0 mode
Resolution 10bit ADC
1304×976 154 FPS
More resolution options could be setup in capture softewares!






More Information
Product Status New
Package width 9 cm
Package height 5.5 cm
Package depth 17.5 cm
No. of parcels 1
